CZS雙出軸、機座式磁粉制動器
|
規格型號
|
額定轉矩N·m
|
額定電流A
|
滑差功率Kw
|
磁粉用量g
|
冷卻方式
|

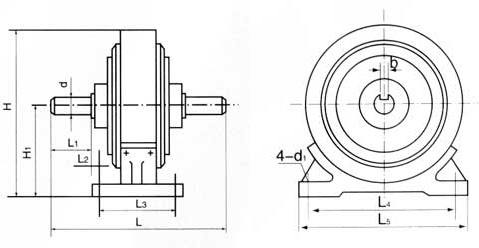

外形尺寸
|
軸聯接尺寸
|
機座安裝尺寸
|
H |
L |
d(h) |
b |
L1 |
L2 |
L3 |
L4 |
L5 |
H1 |
d1 |
CZS-0.2 |
2 |
0.5 |
0.05 |
10 |
自然 |
106 |
128 |
10 |
消扁 |
20 |
32 |
56 |
88 |
104 |
56 |
6.5 |
CZS-0.5 |
5 |
0.6 |
0.13 |
15 |
自然 |
135 |
144 |
12 |
4 |
20 |
22 |
60 |
110 |
125 |
72.5 |
6.5 |
CZS-1 |
10 |
0.8 |
0.26 |
30 |
自然 |
165 |
164 |
12 |
4 |
22 |
32 |
72 |
120 |
150 |
87.5 |
9 |
CZS-2 |
20 |
0.6 |
0.4 |
45 |
雙側散熱筋 |
220 |
196 |
18 |
5 |
30 |
29 |
78 |
155 |
200 |
120 |
11 |
CZS-5 |
50 |
0.8 |
0.5 |
60 |
雙側散熱筋 |
220 |
208 |
22 |
6 |
35 |
30 |
78 |
155 |
200 |
120 |
11 |
CZS-5S |
50 |
0.8 |
1.5 |
60 |
定子水冷 |
245 |
200 |
22 |
6 |
35 |
15 |
100 |
185 |
220 |
135 |
11 |
CZS-10 |
100 |
1.2 |
3 |
120 |
定子水冷雙側散熱筋 |
300 |
294 |
28 |
8 |
55 |
42 |
100 |
185 |
240 |
165 |
13 |
CZS-20 |
200 |
2.5 |
5 |
180 |
定子水冷 |
335 |
322 |
35 |
10 |
60 |
38 |
125 |
268 |
320 |
180 |
13 |
CZS-40 |
400 |
2.2 |
7 |
380 |
定子水冷 |
400 |
342 |
45 |
14 |
70 |
26 |
150 |
300 |
360 |
210 |
13 |
CZS-63 |
630 |
2.5 |
9 |
500 |
定子水冷 |
440 |
428 |
60 |
18 |
100 |
50 |
130 |
340 |
400 |
240 |
17 |
CZS-100 |
1000 |
2.5 |
11 |
1000 |
定子水冷 |
520 |
518 |
60 |
18 |
100 |
49 |
220 |
430 |
500 |
280 |
17 |
CZS-200 |
2000 |
3 |
15 |
1800 |
定子水冷 |
610 |
560 |
75 |
20 |
110 |
45 |
250 |
520 |
600 |
325 |
22 |
CZS-500 |
5000 |
3 |
18 |
4200 |
定子水冷 |
818 |
700 |
90 |
25 |
140 |
50 |
320 |
600 |
700 |
430 |
22 |
CZS-1000 |
10000 |
4 |
25 |
6800 |
定子水冷 |
1125 |
770 |
120 |
32 |
160 |
45 |
360 |
900 |
1050 |
600 |
26 |
CZS-2000 |
20000 |
4 |
32 |
8000 |
定子水冷 |
1425 |
890 |
155 |
40 |
180 |
105 |
320 |
1300 |
1450 |
750 |
34 |
|
| |
 |
〖
