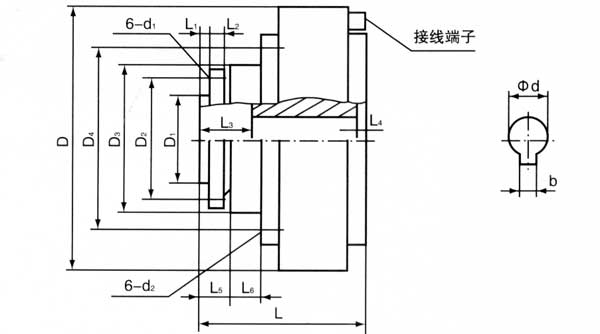

CJKF法蘭輸入、空心軸輸出止口支撐同側式、磁粉離合器：
| 型號 |
技術術參數 |
外形尺寸 |
法蘭聯結尺寸 |
空心軸聯結尺寸 |
止口支撐尺寸 |
| 額定轉矩N.M |
激磁電流A |
允許滑差功率W |
磁粉量g |
D |
L |
D1 |
D2 |
L1 |
L2 |
6-M |
d(h7) |
b |
L3 |
L4 |
D3 |
D4 |
L5 |
L6 |
M |
| CJKF-1.2 |
12 |
1 |
80 |
35 |
152 |
126 |
65 |
80 |
3 |
9 |
6 |
20 |
6 |
49 |
3 |
90 |
105 |
14 |
29 |
6 |
| CJKF-2.5 |
25 |
2 |
120 |
50 |
190 |
136 |
80 |
70 |
3 |
20 |
6 |
25 |
8 |
51 |
4 |
100 |
90 |
25 |
9 |
6 |
| CJKF-5 |
50 |
2.3 |
300 |
100 |
220 |
143 |
95 |
85 |
3 |
12 |
6 |
30 |
8 |
/ |
/ |
125 |
110 |
19 |
15 |
6 |
| CJKF-10 |
100 |
2.5 |
460 |
150 |
290 |
178 |
110 |
130 |
4 |
14 |
10 |
35 |
10 |
77 |
8 |
150 |
180 |
20 |
45 |
10 |
| CJKF-20 |
200 |
2.5 |
700 |
300 |
335 |
198 |
130 |
150 |
4 |
15 |
10 |
45 |
14 |
83 |
9 |
170 |
190 |
21 |
42 |
10 |
| CJKF-40 |
400 |
3 |
1000 |
400 |
398 |
135 |
135 |
160 |
5 |
18 |
12 |
50 |
14 |
91 |
7 |
180 |
210 |
25 |
42 |
10 | |
〖
