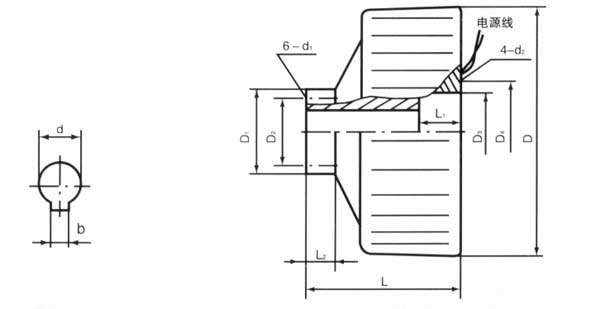

CJKX-型空心軸支撐、輸出、外殼旋轉式磁粉離合器：
| 型號 |
技術術參數 |
空心軸支撐尺寸 |
法蘭聯接尺寸 |
定子固定尺寸 |
外形尺寸 |
| 額定轉矩N.M |
激磁電流A |
允許滑差功率W |
磁粉量g |
d(h7) |
b |
L1 |
D1 |
D2 |
L2 |
6-M |
D3 |
D4 |
M |
D |
L |
| CJKX-1.2 |
12 |
1.5 |
120 |
60 |
18 |
6 |
12 |
80 |
68 |
10 |
6 |
48 |
65 |
6 |
175 |
105 |
| CJKX-2.5 |
25 |
1.5 |
170 |
100 |
20 |
6 |
15 |
90 |
80 |
11 |
6 |
50 |
72 |
6 |
178 |
120 |
| CJKX-5 |
50 |
2 |
300 |
120 |
30 |
8 |
15 |
110 |
95 |
48 |
6 |
64 |
88 |
8 |
220 |
140 |
| CJKX-10 |
100 |
2.5 |
600 |
130 |
35 |
10 |
20 |
125 |
110 |
20 |
10 |
90 |
100 |
6 |
280 |
170 |
| CJKX-20 |
200 |
2.5 |
900 |
150 |
45 |
14 |
25 |
160 |
140 |
20 |
10 |
110 |
140 |
10 |
350 |
195 | |
〖
